interception__gash Module Reference

Functions/Subroutines
subroutine, public	interception_gash_initialize (lactive, fcanopy_cover_fraction, ilanduseindex)
	Initialize the Gash interception algorithm.
elemental real(c_float) function, public	precipitation_at_saturation (e_div_p, canopy_storage_capacity, canopy_cover_fraction)
elemental subroutine, public	interception_gash_calculate (frainfall, ffog, fcanopy_cover_fraction, ftrunk_storage_capacity, fstemflow_fraction, fevaporation_to_rainfall_ratio, fprecipitation_at_saturation, finterception)

Variables
type(data_catalog_entry_t), pointer	pevaporation_to_rainfall_ratio
real(c_float), dimension(:), allocatable, public	evaporation_to_rainfall_ratio
real(c_float), dimension(:), allocatable, public	canopy_storage_capacity_table_values
real(c_float), dimension(:), allocatable, public	trunk_storage_capacity_table_values
real(c_float), dimension(:), allocatable, public	stemflow_fraction_table_values
real(c_float), dimension(:), allocatable, public	gash_interception_storage_max_growing_season
real(c_float), dimension(:), allocatable, public	gash_interception_storage_max_nongrowing_season
real(c_float), dimension(:), allocatable, public	p_sat

Function/Subroutine Documentation

interception_gash_calculate()

elemental subroutine, public interception__gash::interception_gash_calculate	(	real (c_float), intent(in)	frainfall,
		real (c_float), intent(in)	ffog,
		real (c_float), intent(in)	fcanopy_cover_fraction,
		real (c_float), intent(in)	ftrunk_storage_capacity,
		real (c_float), intent(in)	fstemflow_fraction,
		real (c_float), intent(in)	fevaporation_to_rainfall_ratio,
		real (c_float), intent(in)	fprecipitation_at_saturation,
		real (c_float), intent(inout)	finterception )

Definition at line 230 of file interception__gash.F90.

interception_gash_initialize()

subroutine, public interception__gash::interception_gash_initialize	(	logical (c_bool), dimension(:,:), intent(in)	lactive,
		real (c_float), dimension(:), intent(in)	fcanopy_cover_fraction,
		integer (c_int), dimension(:), intent(in)	ilanduseindex )

Initialize the Gash interception algorithm.

Read in a canopy cover fraction and rainfall-to-evaporation ratio grids

Determine how many landuse codes are present

retrieve interception storage max (GROWING SEASON)

retrieve interception storage max (NONGROWING SEASON)

@TODO add more guard code here to QA incoming data

Definition at line 49 of file interception__gash.F90.

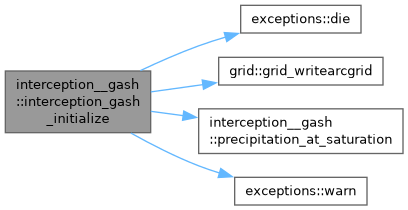

Here is the call graph for this function:

precipitation_at_saturation()

elemental real (c_float) function, public interception__gash::precipitation_at_saturation	(	real (c_float), intent(in)	e_div_p,
		real (c_float), intent(in)	canopy_storage_capacity,
		real (c_float), intent(in)	canopy_cover_fraction )

Definition at line 201 of file interception__gash.F90.

Variable Documentation

canopy_storage_capacity_table_values

real (c_float), dimension(:), allocatable, public interception__gash::canopy_storage_capacity_table_values

Definition at line 35 of file interception__gash.F90.

evaporation_to_rainfall_ratio

real (c_float), dimension(:), allocatable, public interception__gash::evaporation_to_rainfall_ratio

Definition at line 33 of file interception__gash.F90.

gash_interception_storage_max_growing_season

real (c_float), dimension(:), allocatable, public interception__gash::gash_interception_storage_max_growing_season

Definition at line 38 of file interception__gash.F90.

gash_interception_storage_max_nongrowing_season

real (c_float), dimension(:), allocatable, public interception__gash::gash_interception_storage_max_nongrowing_season

Definition at line 39 of file interception__gash.F90.

p_sat

real (c_float), dimension(:), allocatable, public interception__gash::p_sat

Definition at line 41 of file interception__gash.F90.

pevaporation_to_rainfall_ratio

type (data_catalog_entry_t), pointer interception__gash::pevaporation_to_rainfall_ratio

private

Definition at line 31 of file interception__gash.F90.

stemflow_fraction_table_values

real (c_float), dimension(:), allocatable, public interception__gash::stemflow_fraction_table_values

Definition at line 37 of file interception__gash.F90.

trunk_storage_capacity_table_values

real (c_float), dimension(:), allocatable, public interception__gash::trunk_storage_capacity_table_values

Definition at line 36 of file interception__gash.F90.
