Data Types
type	gridded_datasets_t
type	methods_list_t

Functions/Subroutines
subroutine, public	initialize_all (output_prefix, output_dirname, data_dirname, lookup_table_dirname, weather_data_dirname)
subroutine	initialize_soils_landuse_awc_flowdir_values ()
	Initialize soils, landuse, and available water content values.
subroutine	initialize_ancillary_values ()
subroutine	set_lookup_table_directory (lookup_table_dirname)
subroutine	set_data_directory (data_dirname)
subroutine	set_weather_data_directory (weather_data_dirname)
subroutine	initialize_snow_storage ()
subroutine	initialize_soil_storage ()
subroutine	initialize_percent_pervious ()
subroutine	initialize_percent_canopy_cover
subroutine	initialize_hydrologic_soil_groups
subroutine	read_hydrologic_soil_groups
subroutine	read_polygon_id ()
subroutine, public	write_control_file (sfilename, sgridspecification, slextradirectives)
subroutine, public	read_control_file (sfilename)
subroutine	initialize_generic_grid (skey, spathname, loptional, idatatype)
	Generic routine to handle intake of gridded data.
subroutine	initialize_grid_options ()
subroutine	initialize_output_options ()
subroutine	initialize_start_and_end_dates ()
subroutine	initialize_lookup_tables ()
	Find any parameter tables specified in the control file; process and store contents.
subroutine	initialize_generic_method (skey, loptional)
subroutine	initialize_program_options ()
subroutine	initialize_latitude ()
subroutine	initialize_surface_storage_max ()

Variables
integer(c_int), parameter	number_of_known_grids = 46
integer(c_int), parameter	number_of_known_methods = 18
type(gridded_datasets_t), dimension(number_of_known_grids)	known_grids = [ GRIDDED_DATASETS_T("PRECIPITATION ", "", TRUE, DATATYPE_FLOAT ), GRIDDED_DATASETS_T("TMIN ", "", TRUE, DATATYPE_FLOAT ), GRIDDED_DATASETS_T("TMAX ", "", TRUE, DATATYPE_FLOAT ), GRIDDED_DATASETS_T("AVAILABLE_WATER_CONTENT ", "", TRUE, DATATYPE_FLOAT ), GRIDDED_DATASETS_T("REFERENCE_ET0 ", "", TRUE, DATATYPE_FLOAT ), GRIDDED_DATASETS_T("POTENTIAL_ET ", "", TRUE, DATATYPE_FLOAT ), GRIDDED_DATASETS_T("ACTUAL_ET ", "", TRUE, DATATYPE_FLOAT ), GRIDDED_DATASETS_T("SOLAR_RADIATION ", "", TRUE, DATATYPE_FLOAT ), GRIDDED_DATASETS_T("WIND_SPEED ", "", TRUE, DATATYPE_FLOAT ), GRIDDED_DATASETS_T("RAINFALL_ZONE ", "", TRUE, DATATYPE_INT ), GRIDDED_DATASETS_T("REFERENCE_ET_ZONE ", "", TRUE, DATATYPE_INT ), GRIDDED_DATASETS_T("POTENTIAL_ET_ZONE ", "", TRUE, DATATYPE_INT ), GRIDDED_DATASETS_T("FLOW_DIRECTION ", "", TRUE, DATATYPE_INT), GRIDDED_DATASETS_T("FOG_RATIO ", "", TRUE, DATATYPE_FLOAT ), GRIDDED_DATASETS_T("LAND_USE ", "", FALSE, DATATYPE_INT ), GRIDDED_DATASETS_T("SOILS_CODE ", "", TRUE, DATATYPE_INT ), GRIDDED_DATASETS_T("HYDROLOGIC_SOILS_GROUP ", "", FALSE, DATATYPE_INT ), GRIDDED_DATASETS_T("INITIAL_PERCENT_SOIL_MOISTURE ", "", FALSE, DATATYPE_FLOAT), GRIDDED_DATASETS_T("INITIAL_SNOW_COVER_STORAGE ", "", TRUE, DATATYPE_FLOAT), GRIDDED_DATASETS_T("INITIAL_CONTINUOUS_FROZEN_GROUND_INDEX", "", TRUE, DATATYPE_FLOAT), GRIDDED_DATASETS_T("CFGI_LOWER_LIMIT ", "" ,TRUE, DATATYPE_FLOAT), GRIDDED_DATASETS_T("CFGI_UPPER_LIMIT ", "" ,TRUE, DATATYPE_FLOAT), GRIDDED_DATASETS_T("PERCENT_CANOPY_COVER ", "", TRUE, DATATYPE_FLOAT ), GRIDDED_DATASETS_T("PERCENT_PERVIOUS_COVER ", "", TRUE, DATATYPE_FLOAT ), GRIDDED_DATASETS_T("PERCENT_IMPERVIOUS_COVER ", "", TRUE, DATATYPE_FLOAT ), GRIDDED_DATASETS_T("FRACTION_CANOPY_COVER ", "", TRUE, DATATYPE_FLOAT ), GRIDDED_DATASETS_T("FRACTION_PERVIOUS_COVER ", "", TRUE, DATATYPE_FLOAT ), GRIDDED_DATASETS_T("FRACTION_IMPERVIOUS_COVER ", "", TRUE, DATATYPE_FLOAT ), GRIDDED_DATASETS_T("STEMFLOW_FRACTION ", "", TRUE, DATATYPE_FLOAT ), GRIDDED_DATASETS_T("EVAPORATION_TO_RAINFALL_RATIO ", "", TRUE, DATATYPE_FLOAT ), GRIDDED_DATASETS_T("RAINFALL_ADJUST_FACTOR ", "", TRUE, DATATYPE_FLOAT ), GRIDDED_DATASETS_T("CESSPOOL_LEAKAGE ", "", TRUE, DATATYPE_FLOAT ), GRIDDED_DATASETS_T("STORM_DRAIN_CAPTURE_FRACTION ", "", TRUE, DATATYPE_FLOAT ), GRIDDED_DATASETS_T("WATER_BODY_LEAKAGE ", "", TRUE, DATATYPE_FLOAT ), GRIDDED_DATASETS_T("WATER_MAIN_LEAKAGE ", "", TRUE, DATATYPE_FLOAT ), GRIDDED_DATASETS_T("DISPOSAL_WELL_DISCHARGE ", "", TRUE, DATATYPE_FLOAT ), GRIDDED_DATASETS_T("ANNUAL_DIRECT_NET_INFILTRATION_RATE ", "", TRUE, DATATYPE_FLOAT ), GRIDDED_DATASETS_T("ANNUAL_SEPTIC_DISCHARGE ", "", TRUE, DATATYPE_FLOAT ), GRIDDED_DATASETS_T("SEPTIC_DISCHARGE ", "", TRUE, DATATYPE_FLOAT ), GRIDDED_DATASETS_T("RUNOFF_ZONE ", "", TRUE, DATATYPE_INT ), GRIDDED_DATASETS_T("POLYGON_ID ", "", TRUE, DATATYPE_INT ), GRIDDED_DATASETS_T("SOIL_STORAGE_MAX ", "", TRUE, DATATYPE_FLOAT ), GRIDDED_DATASETS_T("PLANT_AVAILABLE_WATER ", "", TRUE, DATATYPE_FLOAT ), GRIDDED_DATASETS_T("MAXIMUM_NET_INFILTRATION ", "", TRUE, DATATYPE_FLOAT ), GRIDDED_DATASETS_T("IRRIGATION_MASK ", "", TRUE, DATATYPE_INT), GRIDDED_DATASETS_T("RELATIVE_HUMIDITY ", "", TRUE, DATATYPE_FLOAT ) ]
type(methods_list_t), dimension(number_of_known_methods), parameter	known_methods = [ METHODS_LIST_T("INTERCEPTION ", FALSE), METHODS_LIST_T("EVAPOTRANSPIRATION ", FALSE), METHODS_LIST_T("RUNOFF ", FALSE), METHODS_LIST_T("PRECIPITATION ", FALSE), METHODS_LIST_T("FOG ", TRUE), METHODS_LIST_T("AVAILABLE_WATER_CONTENT", TRUE), METHODS_LIST_T("SOIL_STORAGE_MAX ", TRUE), METHODS_LIST_T("SOIL_MOISTURE ", FALSE), METHODS_LIST_T("IRRIGATION ", TRUE), METHODS_LIST_T("CROP_COEFFICIENT ", TRUE), METHODS_LIST_T("GROWING_DEGREE_DAY ", TRUE), METHODS_LIST_T("DYNAMIC_LANDUSE ", TRUE), METHODS_LIST_T("DIRECT_RECHARGE ", TRUE), METHODS_LIST_T("DIRECT_NET_INFILTRATION", TRUE), METHODS_LIST_T("DIRECT_SOIL_MOISTURE ", TRUE), METHODS_LIST_T("FLOW_ROUTING ", TRUE), METHODS_LIST_T("ROOTING_DEPTH ", TRUE), METHODS_LIST_T("DUMP_VARIABLES ", TRUE) ]
type(general_grid_t), pointer	pcoord_grd

Function/Subroutine Documentation

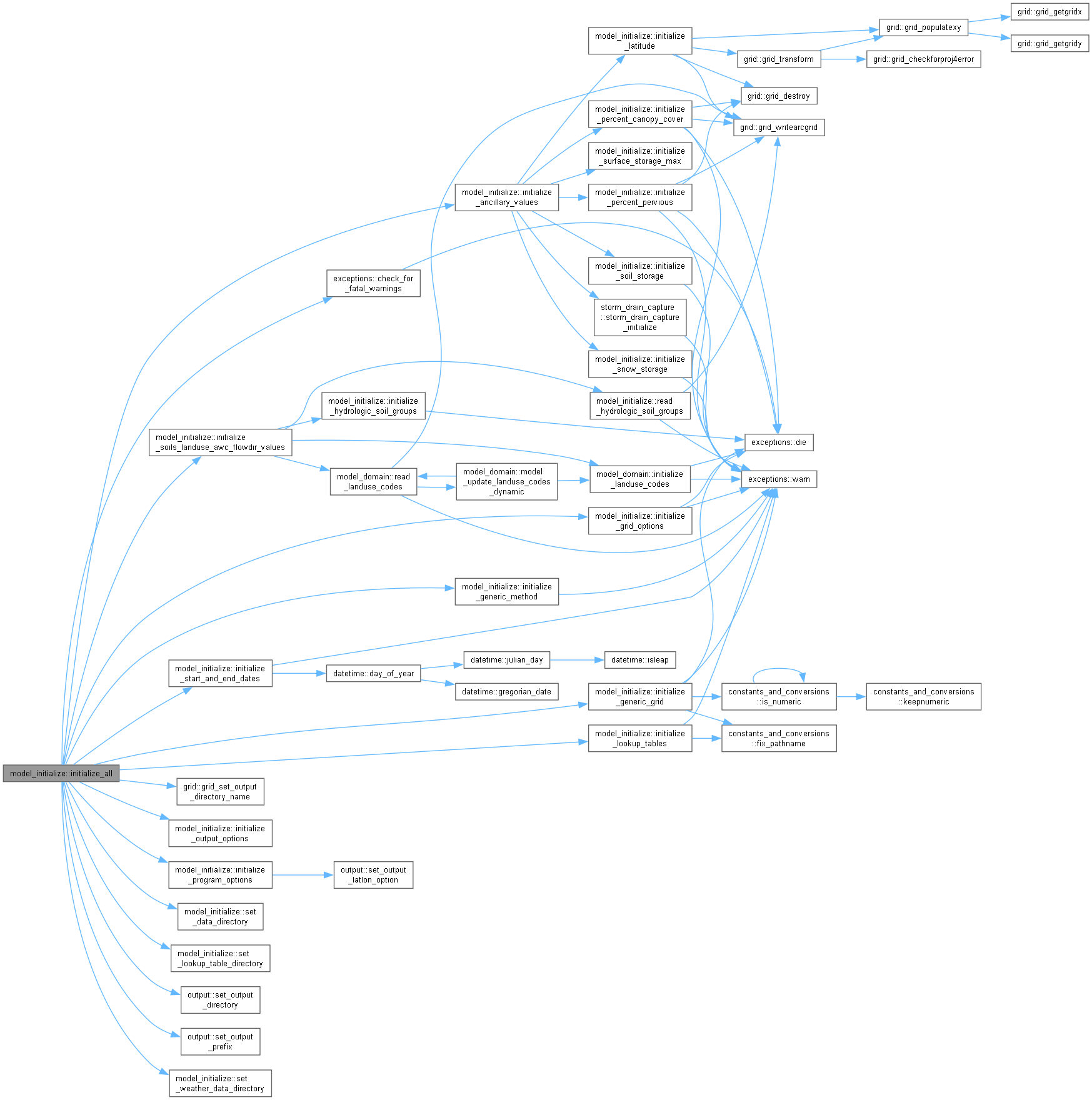

◆ initialize_all()

subroutine, public model_initialize::initialize_all	(	character (len=*), intent(in)	output_prefix,
		character (len=*), intent(in)	output_dirname,
		character (len=*), intent(in)	data_dirname,
		character (len=*), intent(in)	lookup_table_dirname,
		character (len=*), intent(in)	weather_data_dirname )

Definition at line 125 of file model_initialize.F90.

Here is the call graph for this function:

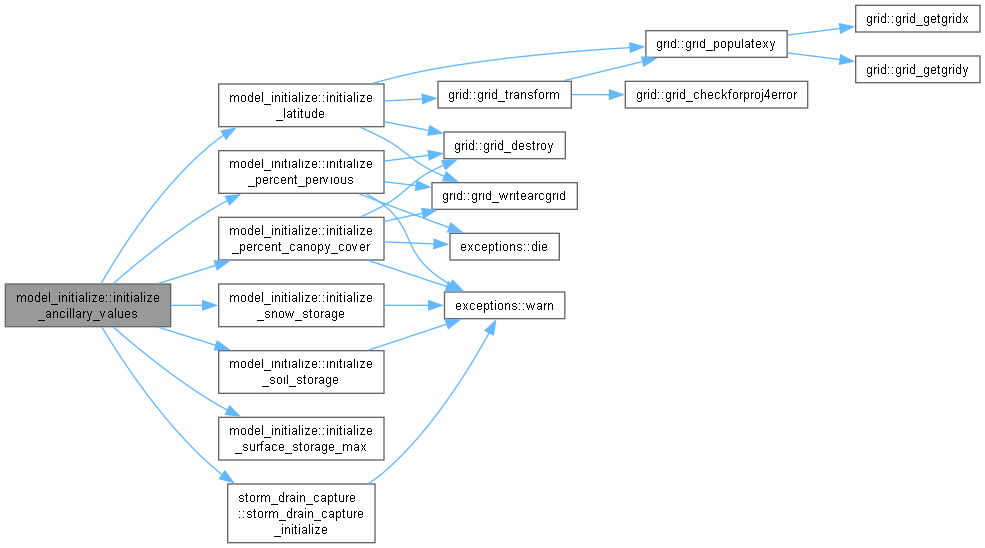

◆ initialize_ancillary_values()

subroutine model_initialize::initialize_ancillary_values

private

Definition at line 286 of file model_initialize.F90.

Here is the call graph for this function:

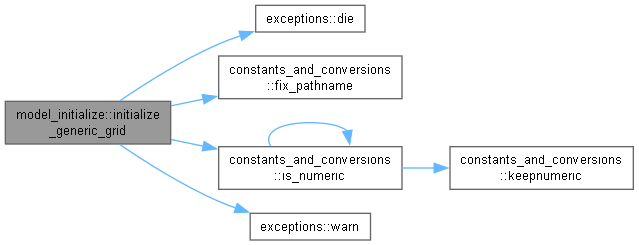

◆ initialize_generic_grid()

subroutine model_initialize::initialize_generic_grid	(	character (len=*), intent(in)	skey,
		character (len=*), intent(in)	spathname,
		logical (c_bool), intent(in)	loptional,
		integer (c_int), intent(in)	idatatype )

private

Generic routine to handle intake of gridded data.

Parameters

[in]	sKey	Name for the data type being processed.
[in]	lOptional	If lOptional is TRUE, kill model run eventually IF sKey does not match a known data type.
[in]	iDataType	Datatype as defined in constants_and-conversion.F90

This routine accepts a data grid type, for example, "PRECIPITATION", and attempts to handle all related control file directives associated with MODEL data type. In MODEL way, a new gridded data type may be added simply by extending the list of known data types to the list defined in the module variable KNOWN_TYPES.

Definition at line 969 of file model_initialize.F90.

Here is the call graph for this function:

◆ initialize_generic_method()

subroutine model_initialize::initialize_generic_method	(	character (len=*), intent(in)	skey,
		logical (c_bool), intent(in)	loptional )

private

Definition at line 1683 of file model_initialize.F90.

Here is the call graph for this function:

◆ initialize_grid_options()

subroutine model_initialize::initialize_grid_options

private

Definition at line 1335 of file model_initialize.F90.

Here is the call graph for this function:

◆ initialize_hydrologic_soil_groups()

subroutine model_initialize::initialize_hydrologic_soil_groups

private

Definition at line 615 of file model_initialize.F90.

Here is the call graph for this function:

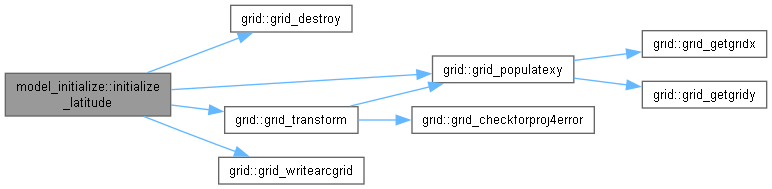

◆ initialize_latitude()

subroutine model_initialize::initialize_latitude

private

Definition at line 1836 of file model_initialize.F90.

Here is the call graph for this function:

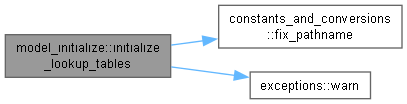

◆ initialize_lookup_tables()

subroutine model_initialize::initialize_lookup_tables

private

Find any parameter tables specified in the control file; process and store contents.

Any control file entry that contains the text "LOOKUP_TABLE" is assumed to specify a parameter table that needs to be read in and processed.

Note: The entries given in the files are implicitly assumed to be in sorted order. For example, if the parameters pertain to landuse codes, it is assumed that all table values are given in order from lowest to highest landuse code.

Definition at line 1600 of file model_initialize.F90.

Here is the call graph for this function:

◆ initialize_output_options()

subroutine model_initialize::initialize_output_options

private

Definition at line 1421 of file model_initialize.F90.

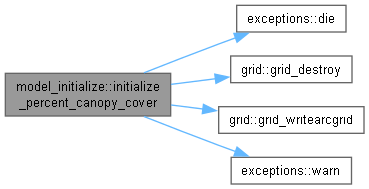

◆ initialize_percent_canopy_cover()

subroutine model_initialize::initialize_percent_canopy_cover

private

Definition at line 549 of file model_initialize.F90.

Here is the call graph for this function:

◆ initialize_percent_pervious()

subroutine model_initialize::initialize_percent_pervious

private

Definition at line 462 of file model_initialize.F90.

Here is the call graph for this function:

◆ initialize_program_options()

subroutine model_initialize::initialize_program_options

private

Definition at line 1761 of file model_initialize.F90.

Here is the call graph for this function:

◆ initialize_snow_storage()

subroutine model_initialize::initialize_snow_storage

private

Definition at line 376 of file model_initialize.F90.

Here is the call graph for this function:

◆ initialize_soil_storage()

subroutine model_initialize::initialize_soil_storage

private

Definition at line 421 of file model_initialize.F90.

Here is the call graph for this function:

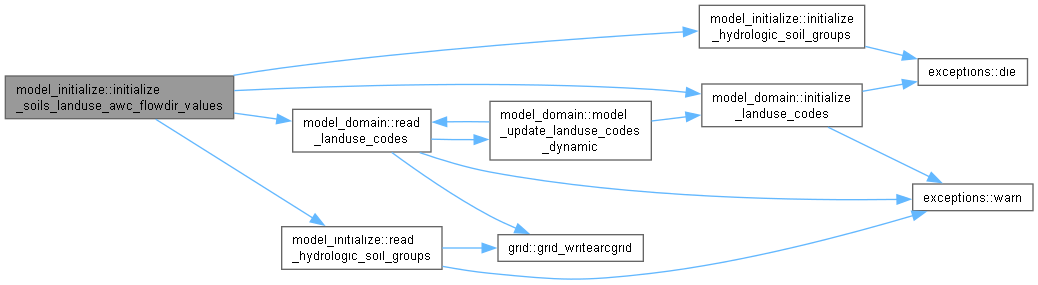

◆ initialize_soils_landuse_awc_flowdir_values()

subroutine model_initialize::initialize_soils_landuse_awc_flowdir_values

private

Initialize soils, landuse, and available water content values.

@NOTE Rather than read the raw values and initialize the SWB variables in one step, we have two steps:

read raw;
initialize SWB variables.

Two steps are needed because the call to "set_inactive_cells" requires access to the "raw" values, not the SWB variables. Basically any cell with negative values found in the landuse, soils groups, or awc grids results in that cell being inactivated. Once the complete collection of active cells is found, the SWB variables can be initialized.

Definition at line 239 of file model_initialize.F90.

Here is the call graph for this function:

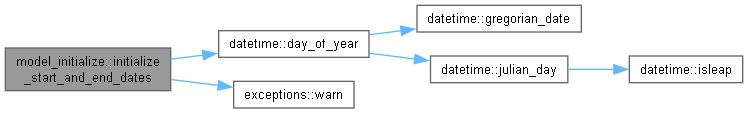

◆ initialize_start_and_end_dates()

subroutine model_initialize::initialize_start_and_end_dates

private

Definition at line 1495 of file model_initialize.F90.

Here is the call graph for this function:

◆ initialize_surface_storage_max()

subroutine model_initialize::initialize_surface_storage_max

private

Determine how many landuse codes are present

Definition at line 1970 of file model_initialize.F90.

◆ read_control_file()

subroutine, public model_initialize::read_control_file ( character (len=*), intent(in) sfilename )

Definition at line 878 of file model_initialize.F90.

◆ read_hydrologic_soil_groups()

subroutine model_initialize::read_hydrologic_soil_groups

private

Definition at line 654 of file model_initialize.F90.

Here is the call graph for this function:

◆ read_polygon_id()

subroutine model_initialize::read_polygon_id

private

Definition at line 679 of file model_initialize.F90.

Here is the call graph for this function:

◆ set_data_directory()

subroutine model_initialize::set_data_directory ( character(len=*), intent(in) data_dirname )

private

Definition at line 321 of file model_initialize.F90.

◆ set_lookup_table_directory()

subroutine model_initialize::set_lookup_table_directory ( character(len=*), intent(in) lookup_table_dirname )

private

Definition at line 310 of file model_initialize.F90.

◆ set_weather_data_directory()

subroutine model_initialize::set_weather_data_directory ( character(len=*), intent(in) weather_data_dirname )

private

Definition at line 352 of file model_initialize.F90.

◆ write_control_file()

subroutine, public model_initialize::write_control_file	(	character (len=*), intent(in)	sfilename,
		character (len=*), intent(in), optional	sgridspecification,
		type (fstring_list_t), optional	slextradirectives )

Definition at line 819 of file model_initialize.F90.

Variable Documentation

◆ known_grids

type (gridded_datasets_t), dimension( number_of_known_grids ) model_initialize::known_grids = [ GRIDDED_DATASETS_T("PRECIPITATION ", "", TRUE, DATATYPE_FLOAT ), GRIDDED_DATASETS_T("TMIN ", "", TRUE, DATATYPE_FLOAT ), GRIDDED_DATASETS_T("TMAX ", "", TRUE, DATATYPE_FLOAT ), GRIDDED_DATASETS_T("AVAILABLE_WATER_CONTENT ", "", TRUE, DATATYPE_FLOAT ), GRIDDED_DATASETS_T("REFERENCE_ET0 ", "", TRUE, DATATYPE_FLOAT ), GRIDDED_DATASETS_T("POTENTIAL_ET ", "", TRUE, DATATYPE_FLOAT ), GRIDDED_DATASETS_T("ACTUAL_ET ", "", TRUE, DATATYPE_FLOAT ), GRIDDED_DATASETS_T("SOLAR_RADIATION ", "", TRUE, DATATYPE_FLOAT ), GRIDDED_DATASETS_T("WIND_SPEED ", "", TRUE, DATATYPE_FLOAT ), GRIDDED_DATASETS_T("RAINFALL_ZONE ", "", TRUE, DATATYPE_INT ), GRIDDED_DATASETS_T("REFERENCE_ET_ZONE ", "", TRUE, DATATYPE_INT ), GRIDDED_DATASETS_T("POTENTIAL_ET_ZONE ", "", TRUE, DATATYPE_INT ), GRIDDED_DATASETS_T("FLOW_DIRECTION ", "", TRUE, DATATYPE_INT), GRIDDED_DATASETS_T("FOG_RATIO ", "", TRUE, DATATYPE_FLOAT ), GRIDDED_DATASETS_T("LAND_USE ", "", FALSE, DATATYPE_INT ), GRIDDED_DATASETS_T("SOILS_CODE ", "", TRUE, DATATYPE_INT ), GRIDDED_DATASETS_T("HYDROLOGIC_SOILS_GROUP ", "", FALSE, DATATYPE_INT ), GRIDDED_DATASETS_T("INITIAL_PERCENT_SOIL_MOISTURE ", "", FALSE, DATATYPE_FLOAT), GRIDDED_DATASETS_T("INITIAL_SNOW_COVER_STORAGE ", "", TRUE, DATATYPE_FLOAT), GRIDDED_DATASETS_T("INITIAL_CONTINUOUS_FROZEN_GROUND_INDEX", "", TRUE, DATATYPE_FLOAT), GRIDDED_DATASETS_T("CFGI_LOWER_LIMIT ", "" ,TRUE, DATATYPE_FLOAT), GRIDDED_DATASETS_T("CFGI_UPPER_LIMIT ", "" ,TRUE, DATATYPE_FLOAT), GRIDDED_DATASETS_T("PERCENT_CANOPY_COVER ", "", TRUE, DATATYPE_FLOAT ), GRIDDED_DATASETS_T("PERCENT_PERVIOUS_COVER ", "", TRUE, DATATYPE_FLOAT ), GRIDDED_DATASETS_T("PERCENT_IMPERVIOUS_COVER ", "", TRUE, DATATYPE_FLOAT ), GRIDDED_DATASETS_T("FRACTION_CANOPY_COVER ", "", TRUE, DATATYPE_FLOAT ), GRIDDED_DATASETS_T("FRACTION_PERVIOUS_COVER ", "", TRUE, DATATYPE_FLOAT ), GRIDDED_DATASETS_T("FRACTION_IMPERVIOUS_COVER ", "", TRUE, DATATYPE_FLOAT ), GRIDDED_DATASETS_T("STEMFLOW_FRACTION ", "", TRUE, DATATYPE_FLOAT ), GRIDDED_DATASETS_T("EVAPORATION_TO_RAINFALL_RATIO ", "", TRUE, DATATYPE_FLOAT ), GRIDDED_DATASETS_T("RAINFALL_ADJUST_FACTOR ", "", TRUE, DATATYPE_FLOAT ), GRIDDED_DATASETS_T("CESSPOOL_LEAKAGE ", "", TRUE, DATATYPE_FLOAT ), GRIDDED_DATASETS_T("STORM_DRAIN_CAPTURE_FRACTION ", "", TRUE, DATATYPE_FLOAT ), GRIDDED_DATASETS_T("WATER_BODY_LEAKAGE ", "", TRUE, DATATYPE_FLOAT ), GRIDDED_DATASETS_T("WATER_MAIN_LEAKAGE ", "", TRUE, DATATYPE_FLOAT ), GRIDDED_DATASETS_T("DISPOSAL_WELL_DISCHARGE ", "", TRUE, DATATYPE_FLOAT ), GRIDDED_DATASETS_T("ANNUAL_DIRECT_NET_INFILTRATION_RATE ", "", TRUE, DATATYPE_FLOAT ), GRIDDED_DATASETS_T("ANNUAL_SEPTIC_DISCHARGE ", "", TRUE, DATATYPE_FLOAT ), GRIDDED_DATASETS_T("SEPTIC_DISCHARGE ", "", TRUE, DATATYPE_FLOAT ), GRIDDED_DATASETS_T("RUNOFF_ZONE ", "", TRUE, DATATYPE_INT ), GRIDDED_DATASETS_T("POLYGON_ID ", "", TRUE, DATATYPE_INT ), GRIDDED_DATASETS_T("SOIL_STORAGE_MAX ", "", TRUE, DATATYPE_FLOAT ), GRIDDED_DATASETS_T("PLANT_AVAILABLE_WATER ", "", TRUE, DATATYPE_FLOAT ), GRIDDED_DATASETS_T("MAXIMUM_NET_INFILTRATION ", "", TRUE, DATATYPE_FLOAT ), GRIDDED_DATASETS_T("IRRIGATION_MASK ", "", TRUE, DATATYPE_INT), GRIDDED_DATASETS_T("RELATIVE_HUMIDITY ", "", TRUE, DATATYPE_FLOAT ) ]

private

Definition at line 50 of file model_initialize.F90.

◆ known_methods

type (methods_list_t), dimension( number_of_known_methods ), parameter model_initialize::known_methods = [ METHODS_LIST_T("INTERCEPTION ", FALSE), METHODS_LIST_T("EVAPOTRANSPIRATION ", FALSE), METHODS_LIST_T("RUNOFF ", FALSE), METHODS_LIST_T("PRECIPITATION ", FALSE), METHODS_LIST_T("FOG ", TRUE), METHODS_LIST_T("AVAILABLE_WATER_CONTENT", TRUE), METHODS_LIST_T("SOIL_STORAGE_MAX ", TRUE), METHODS_LIST_T("SOIL_MOISTURE ", FALSE), METHODS_LIST_T("IRRIGATION ", TRUE), METHODS_LIST_T("CROP_COEFFICIENT ", TRUE), METHODS_LIST_T("GROWING_DEGREE_DAY ", TRUE), METHODS_LIST_T("DYNAMIC_LANDUSE ", TRUE), METHODS_LIST_T("DIRECT_RECHARGE ", TRUE), METHODS_LIST_T("DIRECT_NET_INFILTRATION", TRUE), METHODS_LIST_T("DIRECT_SOIL_MOISTURE ", TRUE), METHODS_LIST_T("FLOW_ROUTING ", TRUE), METHODS_LIST_T("ROOTING_DEPTH ", TRUE), METHODS_LIST_T("DUMP_VARIABLES ", TRUE) ]

private

Definition at line 99 of file model_initialize.F90.

◆ number_of_known_grids

integer (c_int), parameter model_initialize::number_of_known_grids = 46

Definition at line 47 of file model_initialize.F90.

◆ number_of_known_methods

integer (c_int), parameter model_initialize::number_of_known_methods = 18

private

Definition at line 48 of file model_initialize.F90.

◆ pcoord_grd

type (general_grid_t), pointer model_initialize::pcoord_grd

private

Definition at line 121 of file model_initialize.F90.
