Module precipitation__method_of_fragments provides support for creating synthetic daily precipitation given grids of monthly sum precipitation and a "fragments" file. The fragments file is generated from observations at discrete locations, the values of which range from 0 to 1, and the sum of which is 1. The fragment value is simply the daily observed precipitation value divided by the monthly sum of all observed precipitation values for that station. More...
Data Types | |
| type | fragments_sequence_t |
| Data structure to hold static (pre-calculated) fragment selection numbers. More... | |
| type | fragments_set_t |
| Data structure to hold the current active rainfall fragments for a particular rain gage zone. More... | |
| type | fragments_t |
| Data structure that holds a single line of data from the input rainfall fragments file. More... | |
| type | ptr_fragments_t |
| Pointer to a rainfall fragments data structure. More... | |
Functions/Subroutines | |
| subroutine, public | precipitation_method_of_fragments_initialize (lactive) |
| Initialize method of fragments. | |
| subroutine, public | read_daily_fragments (sfilename) |
| subroutine | process_fragment_sets () |
| after fragments file has been read in, iterate over a set of rainfall fragments | |
| subroutine | normalize_february_fragment_sequence (icount) |
| eliminate rainfall on the 29th day of February; bump up all other values to ensure sum = 1 | |
| subroutine | read_fragments_sequence (sfilename) |
| subroutine | update_fragments (lshuffle) |
| Update rainfall fragments on daily basis. | |
| subroutine | update_random_values () |
| subroutine, public | precipitation_method_of_fragments_calculate (lactive) |
Variables | |
| integer(c_int), dimension(:), allocatable, public | rain_gage_id |
| Module variable that holds the rainfall gage (zone) number. | |
| real(c_float), dimension(:), allocatable, public | fragment_value |
| Module variable that holds the current day's rainfall fragment value. | |
| integer(c_int), public | simulation_number = 1 |
| Module variable indicating which "simulation number" is active Only has meaning if the rainfall fragments are being applied via a predetermined sequence file. | |
| real(c_float), dimension(:), allocatable, public | rainfall_adjust_factor |
| Module variable that holds the rainfall adjustment factor. | |
| real(c_double), dimension(:,:), allocatable | random_values |
| Module variable that holds a sequence of random numbers associated with the selection of the fragment set to use. | |
| logical(c_bool), dimension(:), allocatable | sequence_selection |
| Module level variable used to create subsets of the FRAGMENT_SEQUENCES file. | |
| logical(c_bool) | random_fragment_sequences = .true._c_bool |
| Module variable detemining whether fragment sequences are chosen at random or selected from an external file. | |
| type(fragments_t), dimension(:), allocatable, target, public | fragments |
| Array of all fragments read in from the rainfall fragments file. | |
| type(ptr_fragments_t), dimension(:,:), allocatable | current_fragments |
| Subset of rainfall fragments file pointing to the currently active fragments. | |
| type(fragments_set_t), dimension(:), allocatable, public | fragments_sets |
| Array of fragments sets; fragments sets include indices to the start record associated with the fragment for each month; FRAGMENTS_SETS will have a number of elements equal to the number of rainfall gages in the model domain. | |
| type(fragments_sequence_t), pointer | pfragments_sequence |
| Pointer to all or some of the FRAGMENTS_SEQUENCE array. | |
| type(fragments_sequence_t), dimension(:), allocatable, public | fragments_sequence |
| Array of fragment sequence sets. | |
| type(data_catalog_entry_t), pointer | prainfall_adjust_factor |
| integer(c_int) | lu_fragments_echo |
Detailed Description
Module precipitation__method_of_fragments provides support for creating synthetic daily precipitation given grids of monthly sum precipitation and a "fragments" file. The fragments file is generated from observations at discrete locations, the values of which range from 0 to 1, and the sum of which is 1. The fragment value is simply the daily observed precipitation value divided by the monthly sum of all observed precipitation values for that station.
In addition, this routine accepts another set of rainfall adjustment grids, needed in order to ensure the resulting precipitation totals fall in line with other published values, in the development case, the Rainfall Atlas of Hawaii.
Function/Subroutine Documentation
◆ normalize_february_fragment_sequence()
|
private |
eliminate rainfall on the 29th day of February; bump up all other values to ensure sum = 1
Definition at line 448 of file precipitation__method_of_fragments.F90.

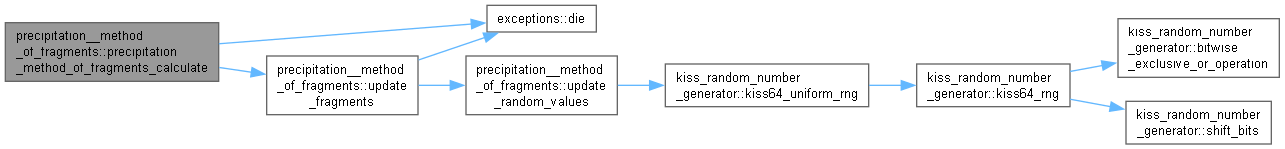

◆ precipitation_method_of_fragments_calculate()
| subroutine, public precipitation__method_of_fragments::precipitation_method_of_fragments_calculate | ( | logical (c_bool), dimension(:,:), intent(in) | lactive | ) |
Definition at line 823 of file precipitation__method_of_fragments.F90.

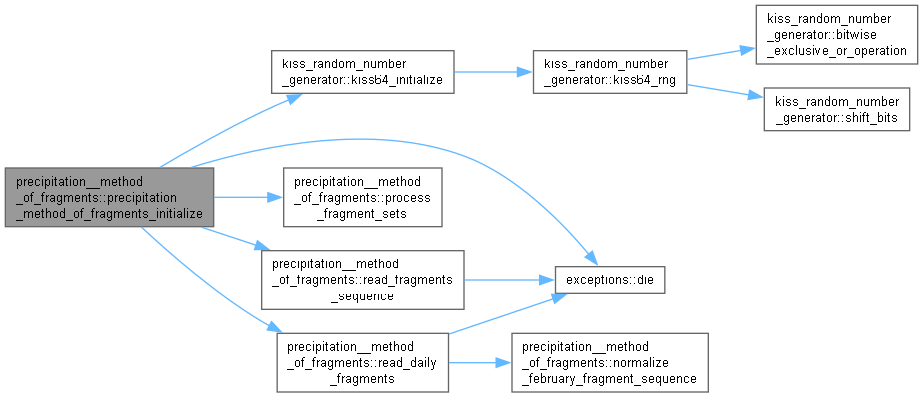

◆ precipitation_method_of_fragments_initialize()
| subroutine, public precipitation__method_of_fragments::precipitation_method_of_fragments_initialize | ( | logical (c_bool), dimension(:,:), intent(in) | lactive | ) |
Initialize method of fragments.
This routine accesses the "RAINFALL_ZONE" gridded data object and calls the routine to read in the rainfall fragments file. Values of RAINFALL_ZONE are stored in a module variable RAIN_GAGE_ID for future reference.
@params[in] lActive 2-D boolean array defining active and inactive cells
Now the fragments file is in memory. Create an ancillary data structure to keep track of which records correspond to various rain zones
Definition at line 128 of file precipitation__method_of_fragments.F90.
◆ process_fragment_sets()
|
private |
after fragments file has been read in, iterate over a set of rainfall fragments
Definition at line 364 of file precipitation__method_of_fragments.F90.

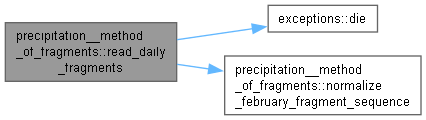

◆ read_daily_fragments()
| subroutine, public precipitation__method_of_fragments::read_daily_fragments | ( | character (len=*), intent(in) | sfilename | ) |
Definition at line 217 of file precipitation__method_of_fragments.F90.
◆ read_fragments_sequence()
|
private |
Definition at line 474 of file precipitation__method_of_fragments.F90.

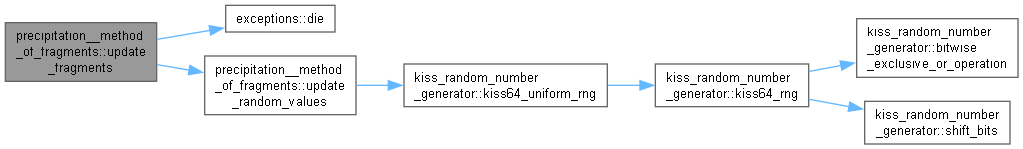

◆ update_fragments()
|
private |
Update rainfall fragments on daily basis.
If called when lShuffle is TRUE: 1) update random values 2) random values are used to select the next active fragment set for the current RainGageZone
Each time the routine is called, the appropriate fragment is selected from the current active fragment set and is assigned to all cells that share a common RainGageZone
Definition at line 649 of file precipitation__method_of_fragments.F90.

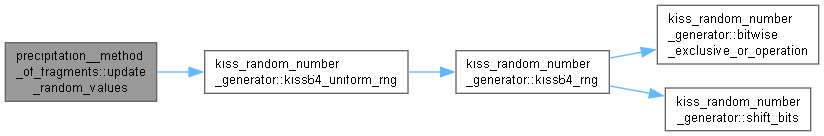

◆ update_random_values()
|
private |
Definition at line 765 of file precipitation__method_of_fragments.F90.
Variable Documentation
◆ current_fragments
|
private |
Subset of rainfall fragments file pointing to the currently active fragments.
Definition at line 91 of file precipitation__method_of_fragments.F90.
◆ fragment_value
| real (c_float), dimension(:), allocatable, public precipitation__method_of_fragments::fragment_value |
Module variable that holds the current day's rainfall fragment value.
Definition at line 45 of file precipitation__method_of_fragments.F90.
◆ fragments
| type (fragments_t), dimension(:), allocatable, target, public precipitation__method_of_fragments::fragments |
Array of all fragments read in from the rainfall fragments file.
Definition at line 88 of file precipitation__method_of_fragments.F90.
◆ fragments_sequence
| type (fragments_sequence_t), dimension(:), allocatable, public precipitation__method_of_fragments::fragments_sequence |
Array of fragment sequence sets.
Definition at line 112 of file precipitation__method_of_fragments.F90.
◆ fragments_sets
| type (fragments_set_t), dimension(:), allocatable, public precipitation__method_of_fragments::fragments_sets |
Array of fragments sets; fragments sets include indices to the start record associated with the fragment for each month; FRAGMENTS_SETS will have a number of elements equal to the number of rainfall gages in the model domain.
Definition at line 96 of file precipitation__method_of_fragments.F90.
◆ lu_fragments_echo
|
private |
Definition at line 116 of file precipitation__method_of_fragments.F90.
◆ pfragments_sequence
| type ( fragments_sequence_t ), pointer precipitation__method_of_fragments::pfragments_sequence |
Pointer to all or some of the FRAGMENTS_SEQUENCE array.
Definition at line 109 of file precipitation__method_of_fragments.F90.
◆ prainfall_adjust_factor
|
private |
Definition at line 114 of file precipitation__method_of_fragments.F90.
◆ rain_gage_id
| integer (c_int), dimension(:), allocatable, public precipitation__method_of_fragments::rain_gage_id |
Module variable that holds the rainfall gage (zone) number.
Definition at line 42 of file precipitation__method_of_fragments.F90.
◆ rainfall_adjust_factor
| real (c_float), dimension(:), allocatable, public precipitation__method_of_fragments::rainfall_adjust_factor |
Module variable that holds the rainfall adjustment factor.
Definition at line 53 of file precipitation__method_of_fragments.F90.
◆ random_fragment_sequences
|
private |
Module variable detemining whether fragment sequences are chosen at random or selected from an external file.
Definition at line 64 of file precipitation__method_of_fragments.F90.
◆ random_values
|
private |
Module variable that holds a sequence of random numbers associated with the selection of the fragment set to use.
Definition at line 57 of file precipitation__method_of_fragments.F90.
◆ sequence_selection
|
private |
Module level variable used to create subsets of the FRAGMENT_SEQUENCES file.
Definition at line 60 of file precipitation__method_of_fragments.F90.
◆ simulation_number
| integer (c_int), public precipitation__method_of_fragments::simulation_number = 1 |
Module variable indicating which "simulation number" is active Only has meaning if the rainfall fragments are being applied via a predetermined sequence file.
Definition at line 50 of file precipitation__method_of_fragments.F90.
